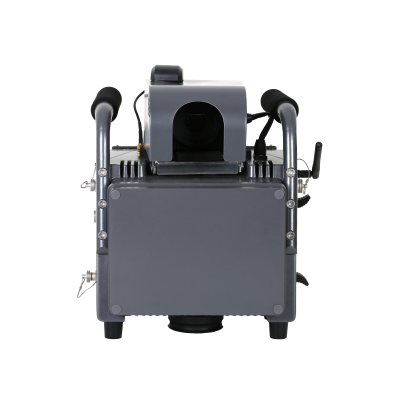

6.8MP Traffic Picture Capture Camera

> All-in-one camera(EXCEPT LENS)
> Built-in HD camera ,heater,lamp, easy to install.
> High performance CCD image sensor, high color reduction degree, high sensitivity
> Embedded integration component design, built-in a variety of algorithms
> Rich variety of signal, data and communication interface
> Saving 30% power consumption compared to traditional solutions
> Built-in thunder-proof module to prevent being struck by lightning
> Temperature -40°C~+80°C, Humidity 10%~90%, suitable for the rough work scene
Technical Data
Image Sensor 1 progressive CCD
Max. Resolution 6.8MP, 3392 (H) ×2008 (V)
Lenses C-Model. Automatic control (P-IRIS drive)
Video Frame Up to 25 fps
Camera Speed Shutter 1/25~ 1/100000
Day/Night Auto ICR (with polarized lens and infrared filter)
Lamp White /IR light
Video Signal Interface 1 ×CVBS port and 2 ×100/1000M Ethernet port
Digital I/O 2 Relay output – 1 optical coupling input – 8 optical coupling input
Extra Interface 2 ×Mini USB and 1 ×SD interface
Speed Range 0~200km/h
Power AC 90~265V, Max. 87W w/o adapter(Camera: Max. 15W, LED Lamp: Max. 6W,Fan: Max. 16W, Heater Max. 50W)
Dimensions 540mm×205mm×143mm
Ingress Protection IP66
Working Environment Temperature -40°C~+80°C, Humidity 10%~90%
Software Features
License Plate Recognition (LPR) Embedded
Monitor Lane 1-3 lanes
Video Compression H.264H, H.264M, H.264B, MJEPG
Remote control function Configure through WEB client
OSD information superimposed Information of the picture includes time and place (channel address), lane information (number,/direction), plate information(license plate), vehicle information (speed and the type of vehicle), illegal (illegal event name and the illegal code) and so on.
Image Records Tamper-resistance Video/Image with watermark tech and check function
CE SECE1606281
FCC SEFD1606281
