IPC-HUM8241-E1

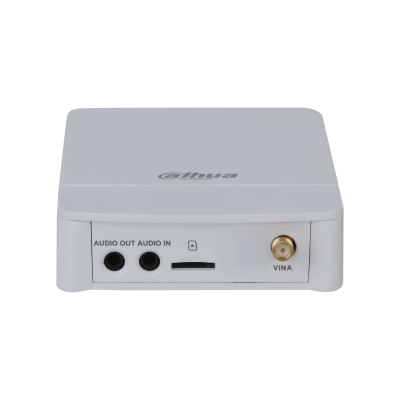

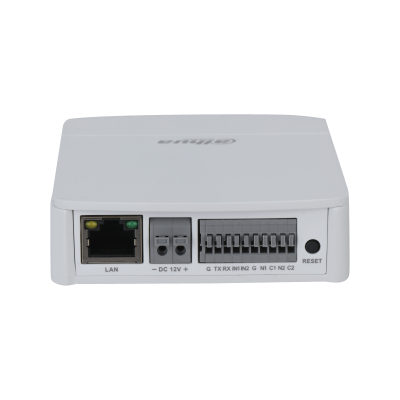

2MP Covert Pinhole WizMind Network Camera-Main Box

> Starlight 2MP 1/2.8″ CMOS image sensor, excellent low luminance performance and high definition of images.
> Outputs max. 2MP (1920 × 1080)@25/30 fps.
> H.265 codec allows high compression ratio and ultra-low bit rate.
> ROI, SMART H.264 +/H.265+, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable
> Intelligent detection: Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle and human); abandoned object, missing object, loitering detection, people gathering, and face detection.
> Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card space warning, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
> Alarm: 2 in, 2 out; audio: 1 in, 1 out; RS-232; max. 256 G Micro SD card.
> 12V DC/PoE power supply facilitates installation.
> Multiple lens unit optional; require a lens unit to work together.

Camera
Image Sensor 1/2.8″ 2 Megapixel progressive CMOS
Max. Resolution 1920 (H) × 1080 (V)
ROM 128 MB
RAM 512 MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s
Min. Illumination 0.005 Lux@F2.0 (Color,30 IRE)

0.0005 Lux@F2.0 (B/W,30 IRE)

S/N Ratio > 56 dB
Lens
Lens Type Fixed-focal
Lens Mount M12
Focal Length 2.8 mm
Max. Aperture 2.8 mm: F2.0
Field of View L1/L4: Horizontal: 105°; Vertical: 58°; Diagonal: 118°
L3: Horizontal: 114°; Vertical: 60°; Diagonal: 136°
L5-2.8 mm: Horizontal: 109°; Vertical: 58°; Diagonal: 127°
Iris Control Fixed
Close Focus Distance 2.8 mm: 0.5 m
DORI Distance Lens Detect Observe Recognize Identify
L1/L4-2.8 mm 42.1 m
(138.1 ft)
16.8 m
(55.1 ft)
8.4 m
(27.6 ft)
4.2 m
(13.8 ft)
L3-2.8 mm 41.4 m
(135.8 ft)
16.6 m
(54.5 ft)
8.3 m
(60.0 ft)
4.1 m
(13.5 ft)
L5-2.8 mm 42.9 m
(140.7 ft)
17.2 m
(56.4 ft)
8.6 m
(28.2 ft)
4.3 m
(14.1 ft)
Intelligence
IVS (Perimeter Protection) Tripwire, intrusion, fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection, people gathering, and parking detection
Face Detection Face detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attribute extraction including 6 attributes (gender, age, glasses, expressions, mask and beard) and 8 expressions (anger, calm, happiness, sadness, disgust, surprise, confusion and fear); face snapshot set as face or one-inch photo; 3 snapshot strategies (real-time snapshot, optimization snapshot, and quality priority); face angle filter; optimization time setting
Smart Search Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
Video
Video Compression H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)
Smart Codec Smart H.265+
Smart H.264+
Video Frame Rate Main stream: 1920 × 1080 @25/30 fps
Sub stream: 704 × 576 @25 fps; 704 × 480 @30 fps
Third stream: 1920 × 1080 @25/30 fps
Stream Capability 3 streams
Resolution 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control CBR/VBR
Video Bit Rate H.264: 3 kbps–20480 kbps
H.265: 3 kbps–20480 kbps
Day/Night Color/B/W
BLC Yes
HLC Yes
WDR 120 dB
Scene Self-adaptation Yes
White Balance Auto; natural; street lamp; outdoor; manual; regional custom
Gain Control Manual; auto
Noise Reduction 3D NR
Motion Detection OFF/ON (4 areas, rectangular)
Region of Interest (RoI) Yes (4 areas)
Defog Yes
Image Rotation 0°/90°/180°/270° (support 90°/270° with 1080p resolution and lower)
Mirror Yes
Privacy Masking 4 areas
Audio
Audio Compression G.711a; G.711Mu; PCM; G.726; G.723
Alarm
Alarm Event No SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, motion detection, video tampering, tripwire, intrusion, fast moving, missing object, abandoned object, parking detection, loitering detection, people gathering; scene changing, audio detection, voltage detection, external alarm, face detection , and security exception.
Network
Network Port RJ-45 (10/100 Base-T)
SDK and API Yes
Network Protocol IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP
Interoperability ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec
User/Host 20 (Total bandwidth: 64 M)
Storage FTP; SFTP; Micro SD card (support max. 256 G); NAS
Browser IE: IE8, IE9, and IE11
Chrome
Firefox
Management Software Smart PSS; DSS; DMSS
Mobile Client IOS; Android
Cyber Security Video encryption; Firmware encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade
Certification
Certifications CE-LVD:EN62368-1;

CE-EMC:Electromagnetic Compatibility Directive 2014/30/EU;

FCC:47 CFR FCC Part 15, Subpart B

Port
Audio Input 1 channel (3.5 mm JACK port)
Audio Output 1 channel (3.5 mm JACK port)
Alarm Input 2 channels in: 5 mA 3V–5V DC
Alarm Output 2 channels out: 1,000 mA 30V DC/500 mA 50V DC
Power
Power Supply 12V DC/PoE(802.3af)
Power Consumption Basic: 2.3W (12V DC); 2.8W (PoE)
Max. (Intelligence + WDR): 3.7W (12V DC); 4.5W (PoE)
Environment
Operating Temperature –40°C to +60°C (–40°F to 140°F)
Operating Humidity ≤95%
Storage Temperature –40°C to +60°C (–40°F to 140°F)
Protection IP66 (L3)
Structure
Casing Metal
Product Dimensions E1: 110 mm × 83 mm × 24 mm (4.33″ × 3.27″ × 0.94″)
L1: Ф30.5 mm × 48.7 mm (Ф1.20″ × 1.92″)
L3: Ф30.5 mm × 57.6 mm (Ф1.20″ × 2.27″)
L4: 35 mm × 35 mm × 26.7 mm (1.38″ × 1.38″ × 1.05″)
L5: 35 mm × 35 mm × 28.4 mm (1.38″ × 1.38″ × 1.12″)
Net Weight 210 g (0.5 lb)
Gross Weight 376 g (0.8 lb)
