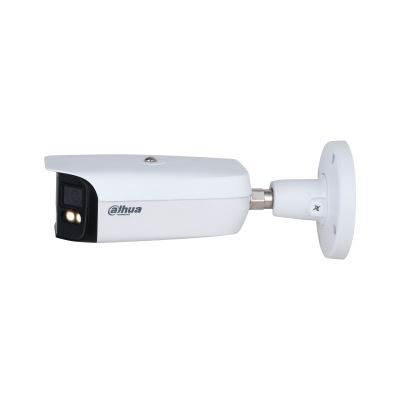

IPC-PFW5849-A180-E2-ASTE

2×4MP Full-color Duo Splicing WizMind Network Camera

> Outputs 180° wide angle splicing image.

> Outputs max. 8 MP (4096 × 1800)@25 fps.

> H.265 codec, high compression rate, ultra-low bit rate.

> Built-in warm light, and the max. illumination distance is 40 m.

> ROI, SMART H.264 +/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.

> WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.

> Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 512 G Micro SD card, built-in Mic and speaker, support two-way talk.

> 12 VDC/PoE power supply, easy for installation.

> IP67 protection.

> Intelligent monitoring: Intrusion, tripwire, heat map, and people counting.

> EPTZ: Enlarge and track the targets of intelligent alarms.

> SMD.

Camera
Image Sensor Dual 1/1.8″ CMOS
Max. Resolution 4096 (H) × 1800 (V)
ROM 128 MB
RAM 1 GB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s
Min. Illumination 0.0005 lux@F1.0 (Color, 30 IRE)
0.0002 lux@F1.0 (B/W, 30 IRE)
0 lux (Illuminator on)
S/N Ratio >56 dB
Illumination Distance 40 m (131.23 ft)
Illuminator On/Off Control Auto
Illuminator Number 4 (Warm light)
Pan/Tilt/Rotation Range Pan: 0°–360°

Tilt: 0°–90°

Rotation: 0°–360°

Lens
Lens Type Fixed-focal
Lens Mount M16
Focal Length 3.6 mm
Field of View Horizontal: 180°; Vertical: 48°
Max. Aperture F1.0
Iris Control Fixed
Close Focus Distance 3.6 m (11.81 ft)
DORI Distance Lens Detect Observe Recognize Identify
3.6 mm 70.3 m (230.64 ft) 28.1 m

(92.19 ft)

14.1 m

(46.26 ft)

7.0 m

(22.97 ft)

Intelligence
IVS (Perimeter Protection) Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection, people gathering, and parking detection
Heat Map Yes
Smart Object Detection Smart abandoned object; smart missing object
People Counting Support the counting of enter number, leave number and pass number, and displaying and outputting yearly/monthly/daily reports.

Support the counting of number in area, and 4 rules configuration. Count number of people or stay time and link alarm.

Support queue management, and 4 rules configuration. Count number of people or stay time and link alarm.

Video
Video Compression H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
Smart Codec Smart H.265+; Smart H.264+
AI Coding AI H.265; AI H.264
Video Frame Rate WDR Off:

Main stream: 4096 × 1800 @ (1–25 fps)

sub stream: 1024 × 452 @ (1–25 fps)

third stream: 1920 × 832 @ (1–25 fps)

WDR On:

Main stream: 4096 × 1800 @ (1–20 fps)

sub stream: 1024 × 452 @ (1–20 fps)

third stream: 1920 × 832 @ (1–20 fps)

*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Stream Capability 3 streams
Resolution 8M (4096 × 1800); 6.5M (3840 × 1680); 4M (3840 × 1080); 4M (2880 × 1264); 1.6M (1920 × 832); 0.7M (1280 × 560); 0.5M (1024 × 452)
Bit Rate Control CBR/VBR
Video Bit Rate H.264: 9 kbps–8192 kbps
H.265: 9 kbps–8192 kbps
Day/Night Color/B/W
BLC Yes
HLC Yes
WDR 140 dB
Scene Self-adaptation (SSA) Yes
White Balance Auto; natural; street lamp; outdoor; manual; regional custom
Gain Control Auto
Noise Reduction 3D NR
Motion Detection OFF/ON (4 areas, rectangular)
Region of Interest (RoI) Yes (4 areas)
Privacy Masking 4 areas
Defog Yes
Audio
Built-in MIC Yes
Audio Compression G.711a; G.711Mu; PCM; G.726; G.723
Alarm
Alarm Event No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; fast moving; abandoned object; missing object; loitering detection; people gathering; parking detection; scene changing; audio detection; voltage detection; external alarm; SMD; people counting in area; stay detection; people counting; security exception
Network
Network Port RJ-45 (10/100 Base-T)
SDK and API Yes
Cyber Security Video encryption; Firmware encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade
Network Protocol IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; Bonjour
Interoperability ONVIF (Profile S/Profile G/Profile T); CGI; Milestone
User/Host 20 (Total bandwidth: 80 M)
Storage FTP; SFTP; Micro SD card (support max. 512 GB); NAS
Browser IE: IE 8 and later
Chrome
Firefox
Management Software Smart PSS; DSS; DMSS
Mobile Client iOS; Android
Certification
Certifications CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
Port
Audio Input 1 channel (RCA port)
Audio Output 1 channel (RCA port)
Alarm Input 1 channels in: 5 mA 3 V–5 VDC
Alarm Output 1 channel out: 300 mA 12 VDC
Power
Power Supply 12 VDC (±30%)/PoE+ (802.3at)/ePoE
Power Consumption Basic: 4.8 W (12 VDC); 5.5 W (PoE)

Max. (WDR + intelligence + warm light + SPK): 10.5W (12 VDC); 11.8 W (PoE)

Environment
Operating Temperature –40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity ≤95%
Storage Temperature –40 °C to +60 °C (–40 °F to +140 °F)
Protection IP67
Structure
Casing Metal + plastic
Product Dimensions 301.2 mm × 128.2 mm × 120.1 mm (11.86″ × 5.05″ × 4.73″) (L × W × H)
Net Weight 1420 g (3.13 lb)
Gross Weight 1570 g (3.46 lb)
