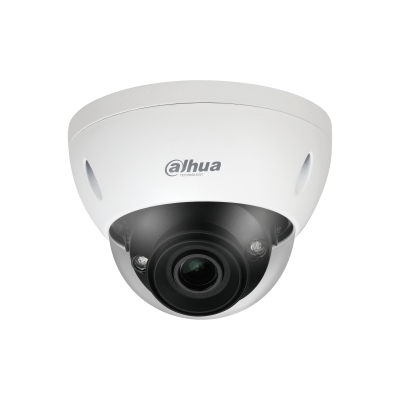

IPC-HDBW5541E-ZHE

5MP IR Vari-focal Vandal-proof Dome WizMind Network Camera
* The parameters and datasheets below can only be applied to 5541-Z-S3 series.
> 5-MP 1/2.7″ CMOS image sensor, low luminance, and high definition image.
> Outputs max. 5MP (2960×1668) @25/30 fps.
> Built-in IR LED, and the max. illumination distance is 40 m.
> ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> With deep learning algorithm, it supports: video metadata, smart sound detection, IVS, face detection, smart object detection, and people counting, etc.
> Alarm: 2 in, 1 out; audio: 1 in, 1 out; supports max. 512 GB Micro SD card, built-in MIC.
> 24V AC/12 VDC/PoE power supply; ePoE.
> IP67 and IK10 protection, heater.
> SMD 3.0.

Camera
Image Sensor 1/2.7″ CMOS
Max. Resolution 2960 (H) × 1668 (V)
ROM 4 GB
RAM 1 GB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s
Min. Illumination 0.0009 lux@F1.5 (Color, 30 IRE)
0.0005 lux@F1.5 (B/W, 30 IRE)
0 lux (Illuminator on)
S/N Ratio >56 dB
Illumination Distance 40 m (131.23 ft) (IR)
Illuminator On/Off Control Auto; Zoomprio; Manual
Illuminator Number 3 (IR LED)
Angle Adjustment Pan: 0°–355°
Tilt: 0°–65°
Rotation: 0°–355°
Lens
Lens Type Motorized vari-focal
Lens Mount φ14
Focal Length 2.7 mm–13.5 mm
Max. Aperture F1.5
Field of View H: 114°–32°; V: 58°–17°; D: 138°–36°
Iris Control Auto
Close Focus Distance 0.8 m (2.62 ft)
DORI Distance Lens Detect Observe Recognize Identify
W 213.6 m (700.79 ft) 85.4 m

(280.18 ft)

42.7 m

(140.09 ft)

21.4 m

(70.21 ft)

T 572.8 m (1879.27 ft) 229.1 m

(751.64 ft)

114.6 m

(375.66 ft)

57.3 m

(68.90 ft)

Intelligence
IVS (Perimeter Protection) Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection, people gathering, and parking detection
Smart Object Detection Smart abandoned object; smart missing object
SMD 3.0 Less false alarm, longer detection distance
AI SSA Yes
Face Detection Face detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attributes extraction including 6 attributes and 8 expressions; face snapshot set as face, one-inch photo or custom; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting.
People Counting Tripwire people counting, generating and exporting report (day/week/month/year); people counting in area and queue management; generating and exporting report (day/week/month); 4 rules can be set for tripwire, people counting in area and queue management.
Heat Map Yes
Video Metadata Motor vehicle, non-motor vehicle, face, human body detection; track; snapshot; snapshot optimization; optimal face snapshot upload.
Motor vehicle attributes: vehicle type, vehicle color, vehicle logo and other attributes : seatbelt, smoking, calling.
Non-motor vehicle attributes: type, color, number of people, top type and color, hat.
Human body attributes: gender, top/bottom type and color, bag, hat and umbrella. Face attributes: gender, age, expressions, glasses, face mask and beard.
Smart Search Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
Smart Sound Detection Yes
Video
Video Compression H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
Smart Codec Smart H.265+; Smart H.264+
AI Coding AI H.265; AI H.264
Video Frame Rate Main stream: 2960 × 1668@(1–25/30 fps)
Sub stream: D1@(1–25/30 fps)
Third stream: 1080p@(1–25/30 fps)
Fourth stream: 720p@(1–25/30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
Stream Capability 4 streams
Resolution 5M (2960 × 1668); 5M (2880 × 1620); 4M (2688 × 1520); 3.6M (2560 × 1440); 3M (2048 × 1536); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control CBR/VBR
Video Bit Rate H.264: 32 kbps–16384 kbps; H.265: 12 kbps–11776 kbps
Day/Night Auto(ICR)/Color/B/W
BLC Yes
HLC Yes
WDR 120 dB
Scene Self-adaptation (SSA) Yes
White Balance Auto; natural; street lamp; outdoor; manual; regional custom
Gain Control Auto
Noise Reduction 3D NR
Motion Detection OFF/ON (4 areas, rectangular)
Region of Interest (RoI) Yes (4 areas)
Image Stabilization Electronic Image Stabilization (EIS)
Defog Yes
Image Rotation 0°/90°/180°/270° (Support 90°/270° with 4M (2688 ×1520) resolution and lower)
Mirror Yes
Privacy Masking 8 areas
Audio
Built-in MIC Yes
Audio Compression G.711a; G.711Mu; PCM; G.726; G.723
Alarm
Alarm Event No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; fast moving; abandoned object; missing object; loitering detection; people gathering; parking detection; scene changing; audio detection; external alarm; face detection; video metadata; SMD; people counting in area; stay detection; people counting; people number error detection; queue people number alarm; queue time alarm; security exception; defocus detection
Network
Network Port RJ-45 (10/100 Enhancement Base-T)
SDK and API Yes
Network Protocol IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P
Interoperability ONVIF (Profile S/Profile G/Profile T); CGI
User/Host 20 (Total bandwidth: 80 M)
Storage FTP; SFTP; Micro SD card (support max. 512 GB); NAS
Browser IE: IE 9 and later

Chrome: Chrome 102 and later

Firefox:Firefox 88 and later

Management Software SmartPSS Lite; DSS; DMSS
Mobile Client iOS; Android
Cyber Security Configuration encryption; trusted execution; Digest; security logs; WSSE; account lockout; syslog; video encryption; 802.1x; IP/MAC filtering; HTTPS; trusted upgrade; trusted boot; firmware encryption; generation and importing of X.509 certification
Certification
Certifications CE-LVD: EN62368-1;
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;
FCC: 47 CFR FCC Part 15, Subpart B;
UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14
Port
Audio Input 1 channel (RCA port)
Audio Output 1 channel (RCA port)
Alarm Input 2 channels in: wet contact, 5mA 3V–5V DC
Alarm Output 1 channel out: wet contact, 300mA 12V DC
Power
Power Supply 12 VDC/24 VAC/PoE (802.3af)/ePoE
Power Consumption Basic: 3.9 W (12 VDC); 4.6 W (24 VAC); 5.6 W (PoE)
Max. (H.265+ WDR+ Intelligence on+IR on): 10 W (12 VDC); 11.7 W (24 VAC); 12.1 W (PoE)
Environment
Operating Temperature –40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity ≤95%
Storage Temperature –40 °C to +60 °C (–40 °F to +140 °F)
Storage Humidity 10%–95% (RH), non-condensing
Protection IP67; IK10
Structure
Casing Material Metal
Product Dimensions Φ159.1 mm × 118.1 mm (6.26″ × Φ4.65″)
Net Weight 0.91 kg (2.01 lb)
Gross Weight 1.22 kg (2.69 lb)
Datasheet

https://www.cctvdahua.co.id/wp-content/uploads/2023/04/IPC-HDBW5541E-ZHE_S3_datasheet_20230213.pdf
