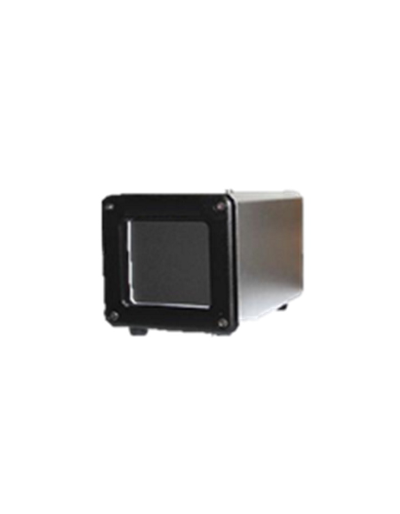

JQ-D70Z Human Temperature Measurement Blackbody
Product overview and features
Human temperature measurement blackbody temperature reference unit.
Product features:
- The intelligent temperature control meter is used to control the temperature with high precision and stability.
- The target surface is coated with high emissivity aviation coatings.
- Cost-effective.
Parameters
- Working temperature Factory settings: 35.0℃, 37.0℃, 40.0℃ (Environment temperature +5.0 50.0 adjustable)
- Effective radiant surface 70mm×70mm
- Temperature resolution 0.1℃
- Temperature accuracy ±0.2℃(single point)
- Temperature stability ±( 0.1~0.2 )℃/30min
- Effective emissivity 0.97
- Temperature sensor Pt100
- Power supply 220VAC 50Hz 35W
- Net weight 1.8 kg
- Dimensions W110mm×H120mm×D180mm
- Ambient temperature/humidity 0℃~40℃ / ≤80%RH
